How to correctly determine the width of a roller blind and cut it yourself

Calculation of width

The dimensions of the curtains depend on the size of the window, the shape of the sashes. The length of the roller cloth is not so important when choosing, because it is standard and adjustable. The standard height of the fabric is 180 cm, the width of the curtains from a minimum of 25 cm to a maximum of 300 cm. The measurement is always taken according to the width indicated on the packaging, taking into account the shaft.

For standard windows, you can choose ready-made curtains with instructions and an indicated mounting location, but for non-standard windows or windows of irregular shape, the width of the fabric must be selected independently or a custom order must be made.

To correctly measure a plastic or wooden window for installing curtains, you need to:

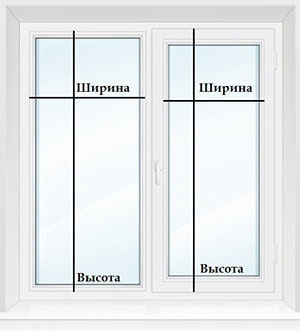

1. Measure the width and length of the glass to determine the minimum required size of the roller blind.



2. Calculate the depth of the glazing bead (the part between the glass and the window door). If the depth of the glazing bead is 1.5 cm or less, the “Mini” roller blind system is suitable. If the size is larger, the “Uni” system will do.



Calculate the glazing bead depth (parts between the glass and the window door). If the glazing bead depth is 1.5 cm or less, the Mini roller blind system is suitable. If the size is larger, the Uni system is suitable.

Calculate the glazing bead depth (the part between the glass and the window door). If the glazing bead depth is 1.5 cm or less, the Mini roller blind system is suitable. If the size is larger, the “Uni” system will do.

Roller fabric, which is attached directly to the sash, shades the room well and remains unnoticed when rolled up.

MINI System

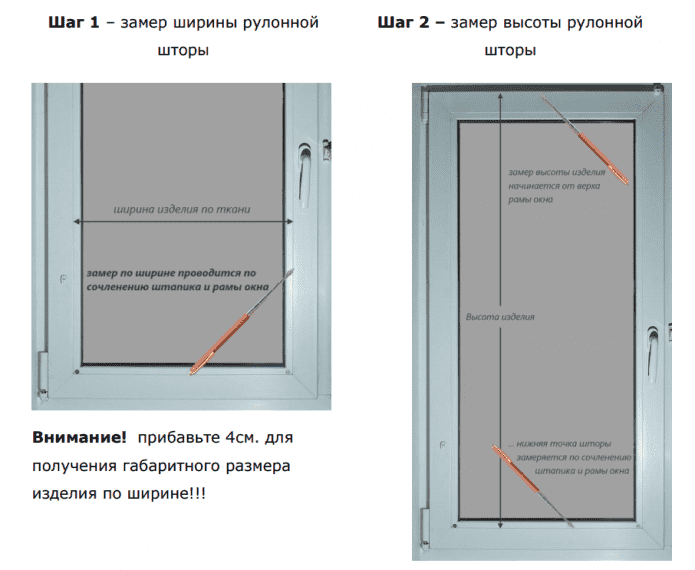

To calculate the width of the “Mini” roller blind for installation on the sash, you need to:

• measure the width and height of the glass in mm. Add 40 mm to the resulting width and 120 mm to the height.

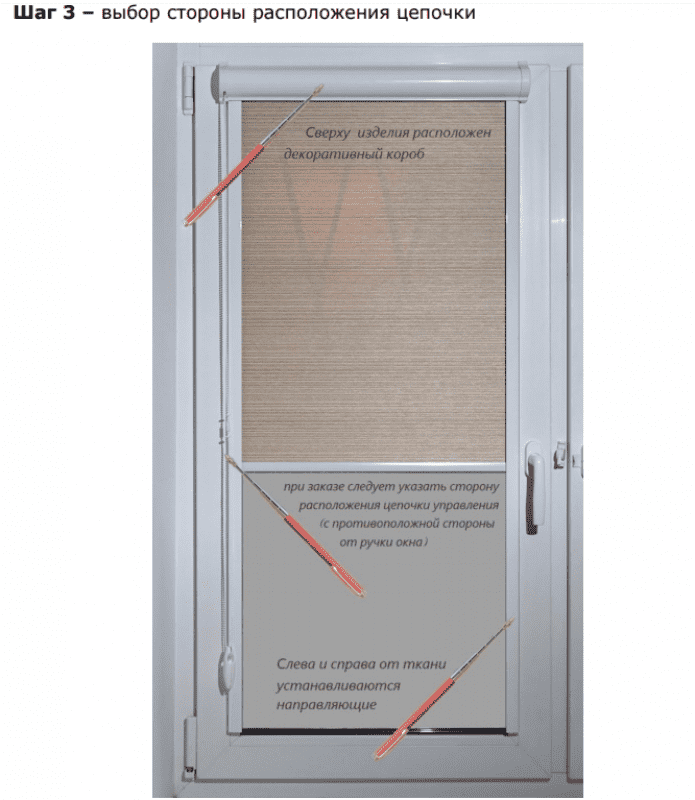

• Decide on the location of the roller blind lifting mechanism, the best option is on the side.
• Select the mounting method, this can be adhesive tape, screws, a bracket.

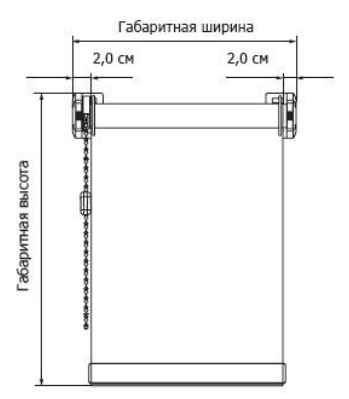

The standard width of the roller blind for mounting on the sash is 9 centimeters greater than the width of the glass. The Mini blinds are fixed to the sash without drilling, but with the help of a plastic fastener, Velcro, staples.

UNI System

The “Uni” system fits into any interior. The roll is hidden in a box and can be mounted at any level, on the sash or over the window opening. Mounted with self-tapping screws.

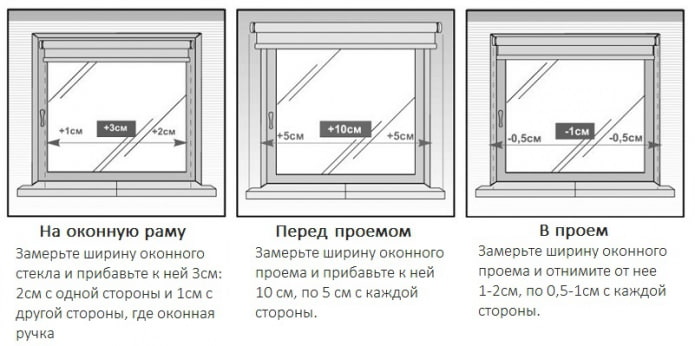

To calculate the width of roller blinds for installation above the opening, you need to:

• measure the external dimensions of the length and width, and select a model based on these data, taking into account the dimensions of the roller blind guides.

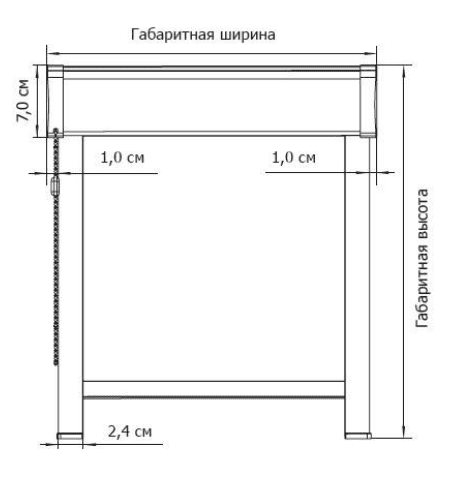

• the height is equal to the sum of the external size of the window and the height of the box, 7 centimeters (UNI 2).

The standard width for installation on the wall above the window opening is 10 centimeters greater than the width of the window opening so that the fabric is light-proof.

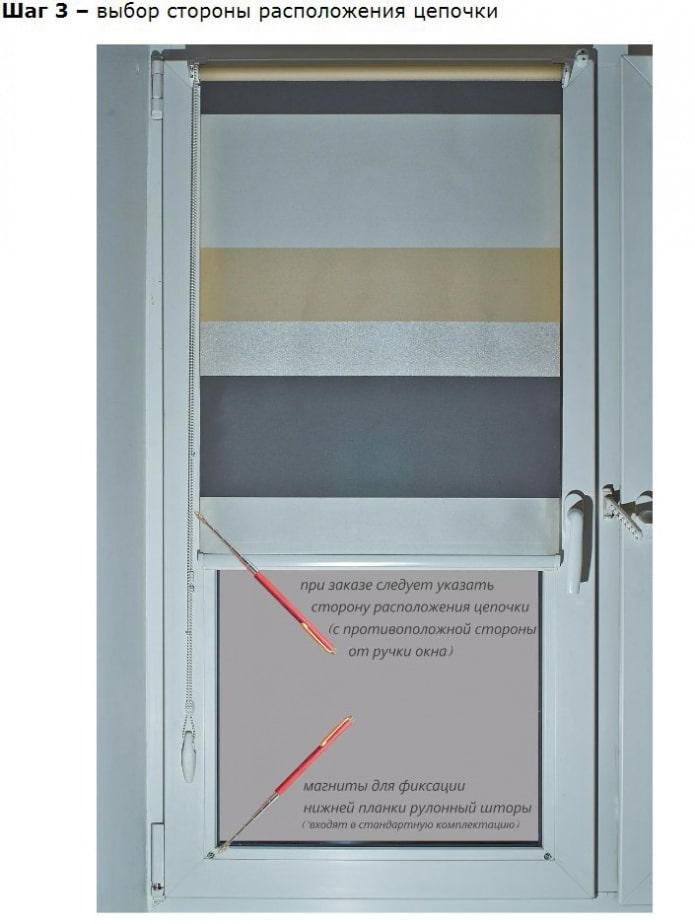

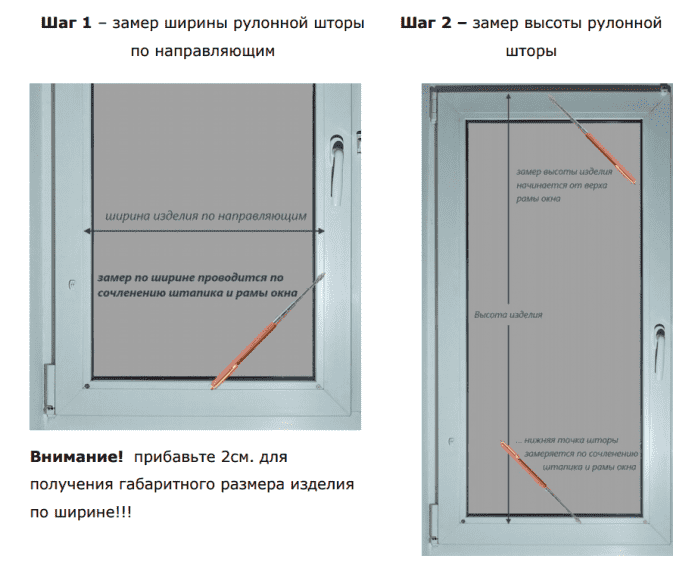

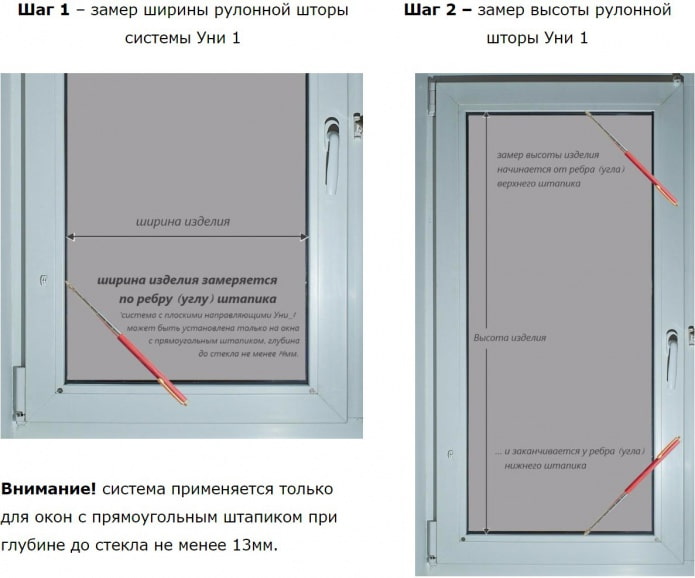

Measuring a roller blind, UNI 1 system

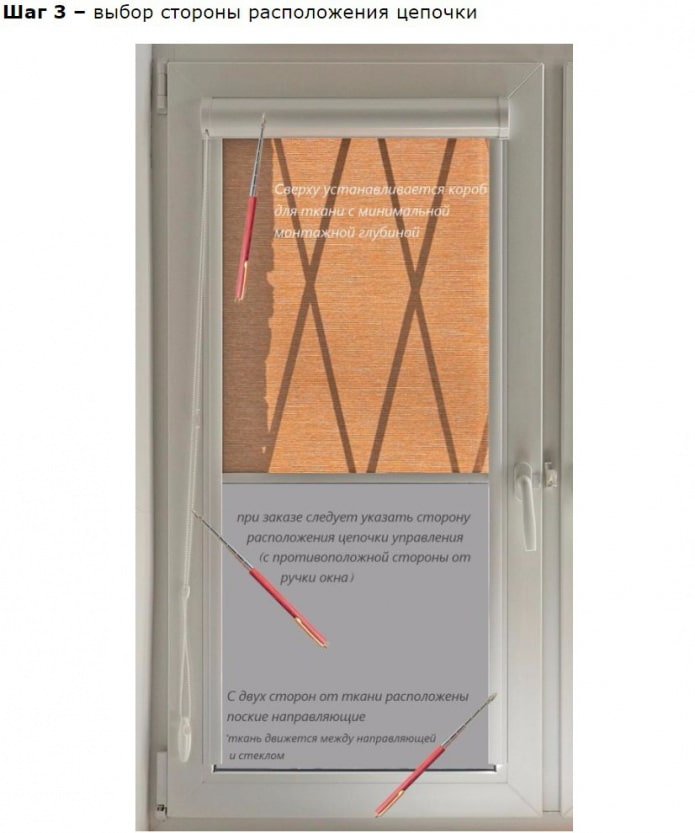

Measuring a roller blind, UNI 2 system

Table of minimum and maximum sizes

How to change the width of a roller blind (video instruction)

How to trim the width of a curtain (photo instruction)

You can handle the task of trimming the width of a curtain yourself and without special tools. To take all measurements, use a length ruler or a construction tape measure.

You can shorten the width of the roll as follows:

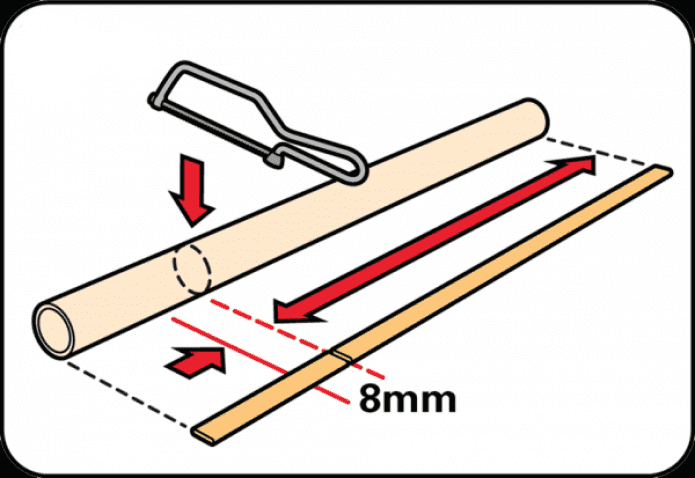

1. Cut off the shaft. To do this, subtract the thickness of the bracket from the width of the roll. Measure the required length of the shaft, cut off the excess and install a special plug on it.

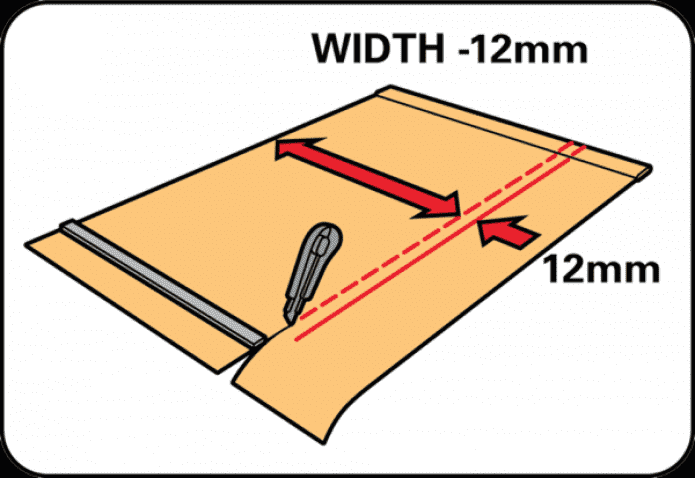

2. Spread out the curtain, mark the required width using a rail.
3. Cut the fabric with a knife.

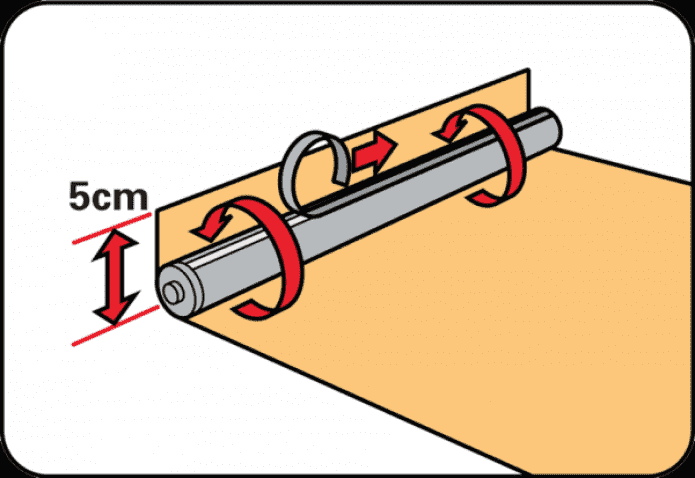

4. To install the material on the shaft, remove the film from the self-adhesive strip of the shaft. Check that the roller blind is wound onto the shaft from the side of the window opening. Check where the curtain lifting mechanism will be located. The curtain must be fixed on the shaft strictly horizontally to avoid distortions. Bend 5 centimeters of the top of the roll to form a fold. Attach the shaft to the fold with the adhesive side facing up.
5. Roll the shaft to the top of the canvas, wrap the roller blind, leaving a free edge of ¼, fix the lower rail.

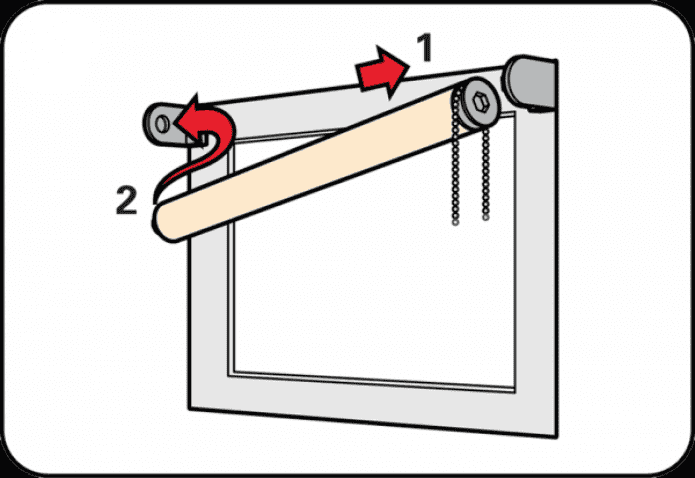

6. The sequence of installation on the bracket is as follows: first, insert the edge with the mechanism, then the other.

Spread the curtain, mark the desired width using a rail.

Cut the fabric with a knife.

To install the material on the shaft, remove the film from the self-adhesive strip of the shaft. Check that the roller blind is wound onto the shaft from the side of the window opening. Check where the curtain lifting mechanism will be located. The blind must be fixed on the shaft strictly horizontally to avoid distortions. Bend 5 centimeters of the top of the roll to form a fold. Attach the shaft to the fold with the self-adhesive side facing up.

Roll the shaft to the top of the canvas, wrap the roller blind, leaving a free edge of ¼, fix the bottom rail.

Installation on the bracket has the following sequence: first, the edge with the mechanism is inserted, then the other.

It is not difficult to initially measure the width correctly based on the place of attachment to the window, if you initially select a curtain system model and take measurements from the window opening or sash. But if there is a need to cut the width of the roller blind, then you can do it yourself.
